HORAD professional R& D team can customize personalized semi-automatic or fully automatic production lines based on different customer needs, ineluding factory layout, equipment deployment and production line planning, to improve the automation level of the solar panel production, increase production efficiency, and reduce the manpower.

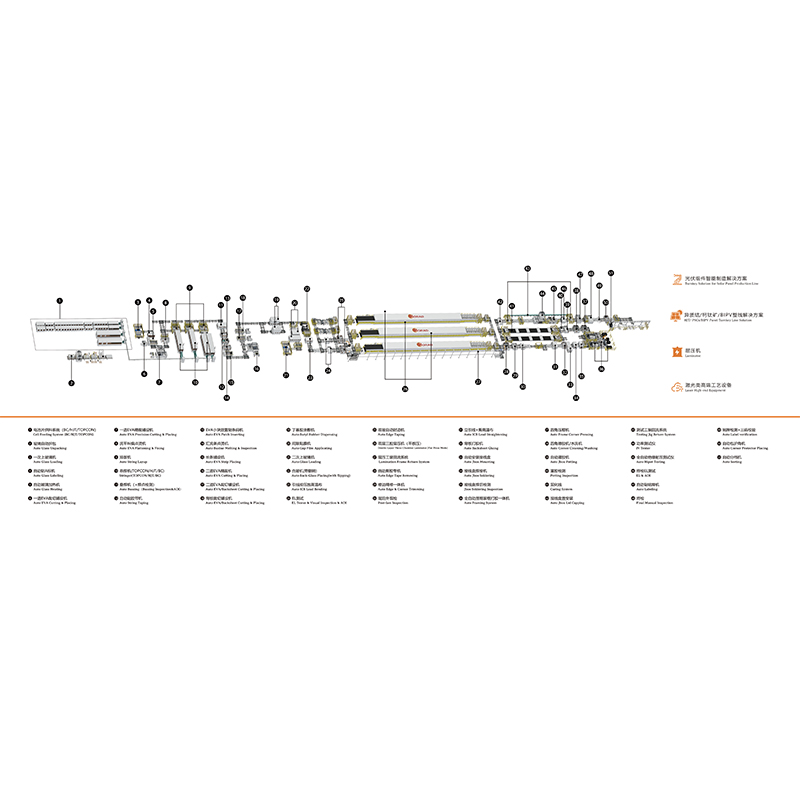

Perovskite packaging equips includes: Bus-bar pasting, Insulation-tape pasting, Conductive-tape pasting, Butyl adhesive coating, Cleaning and drying, Adhesive film cutting, Laminating, Framing, J-box installation, J-box gluing, Curingline, EL testing, IV pre lighting, IV testing, Sorting, etc.

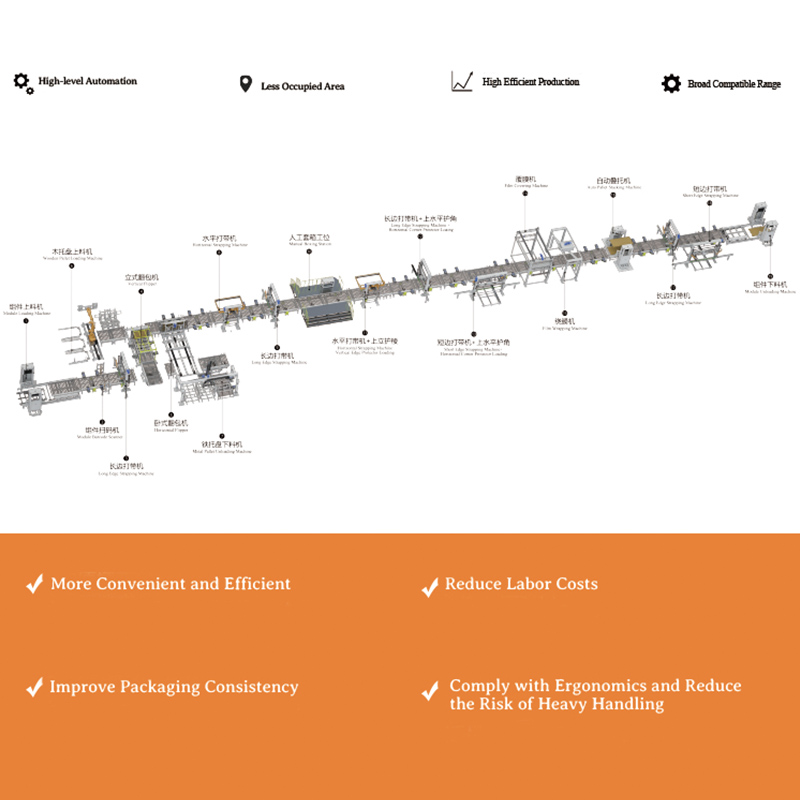

Auto Packing System
Technical PerformanceA.Can be used for plyboard pressing, traditional lamination method.B.It can be used for flat press, saving time to replace silicone boards.laminated double glass to achieve frameless operation, improving theefficiency of switching patterns.C.A wider process window, adapting to more components.Save 1.5 million USD/year/lineCancel Silicone Membrane Save ManpowerCancel G-G Frame Reduce Film WeightCancel Film Pad Shorten Process Time
It can be used for flat press, saving time to replace siliconeboards: laminated double glass to achieve frameless operation, improving the efficiency ofswitching patterns.
1. Applicable to all current mainstream panels and packaging methods.2. Satisfy the three modes of panels placement, horizontal, long side vertical insertion, and short side vertical insertion.
1. Servo + cylinder correction, one-button switching of diferent version panels.2. The motion unit is driven by a servo motor, which is fast, accurate, stable and reliable.3. The unmanned work of wrapping corner guards is realized, and there is a silo at each corner.4. The four corners are wrapped at the same time, with a cycle time of 13s, fast speed and high efficiency.5. The yield rate of wrapping corner guards is ≥99.9%, which is stable and reliable and saves labor.
1. Automatically frame barcode labeling and backplate nameplate.2. Glass servo correction, one-click switching of different types of panels.
It can meet the DC withstand voltage, ground resistance, insulation resistance and other tests, and automatically perform withstand voltage/insulation/ground resistance tests on photovoltaic modules, and has automatic sound and light alarm function for unqualified products.
Auto testing jig placing machine installs the crossbar tooling on the panels. After the subsequent workstation completes the inspection, the testing jig removal machine removes the tooling and places it on the return line for circulation.
1. Using the dual robot mode, the material placement and capping can be performed simultaneously, and the robot has pressure sensing feedback closed-loop control.2. Vacuum detection+ upper camera detection + side re-inspection camera detection.
1. Suitable for all current mainstream panels handling and palletizing.2. Servo drive, material picking and placing adopts two forms: clamping and suction cup, and can be placed in a staggered manner.
