It can be used for flat press, saving time to replace siliconeboards: laminated double glass to achieve frameless operation, improving the efficiency ofswitching patterns.
Function

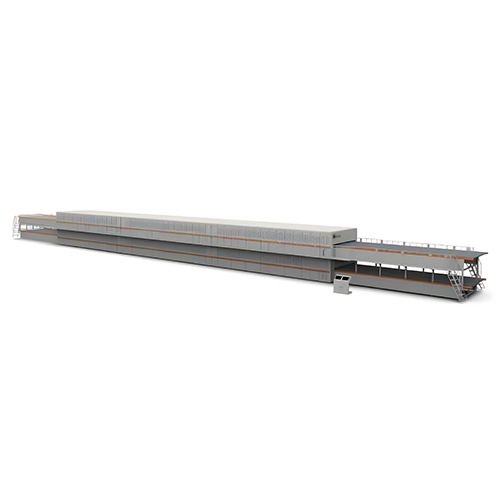

1. Multi-layer laminated packaging platform.
2. Reduce the floor area and reduce the space by 30%-40% compared to laminates with the same production capacity.
3. Each layer is laminated independently and has no efect on each other.
4.Three-chamber large transmission, low temperature.
5. The feed is correeted and the lamination positioning is more accurate.
Technical Performance
1. It can be used for plyboard pressing, traditional laminationmethod.
2. It can be used for flat press, saving time to replace siliconeboards: laminated double glass to achieve frameless operation, improving the efficiency ofswitching patterns.
3. A wider process window to adapt to more Py Module.
Technical Parameters
| ltem | Parameter |
| Panel Size | L:1640-2550(mm);W: 990-1450(mm) |
| Voltage | AC380V+5%, 50Hz |
| Power | 1200kw |
| Air pressure | 0.6-0.8 (Mpa) |
| Opening and closing method | cylinder |
| Overall size (L*H* W) | 29000*3850*5400(mm) |
| Weight | 300T |
| Layer | 6 layer/8 layer |
| Temperature control accuracy | ±1°C |
| Temperature Uniformity | ±1.5°C |
