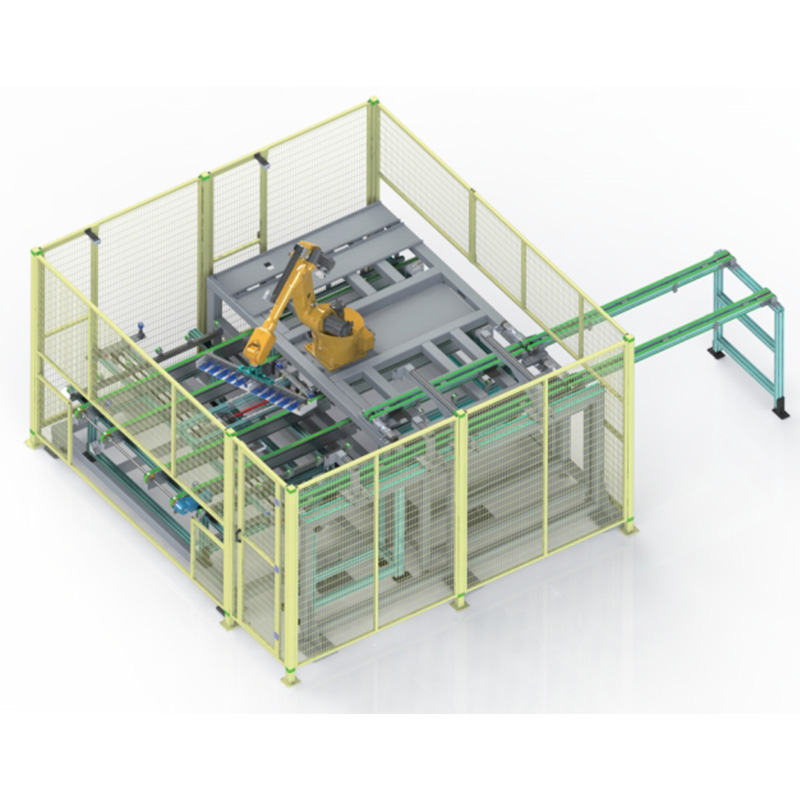

1. The robot automatically pick&place the string.
2. Servo and cylinder to straighten the glass.
3. Switch different versions of software in one click.
4. Meet the AB string layup function.
Function
1. The robot automatically pick&place the string.
2. Servo and cylinder to straighten the glass.
3. Switch different versions of software in one click.
4. Meet the AB string layup function.
Technical Performance
1. Layup accuracy ±0.4mm.
2. Cell string transmission accuracy ≤2mm.
3. Camera accuracy ≤0.02mm.
Technical Parameters
| Item | Parameter |
| Panel size | L:1650-2650(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 3P+1N+1PE, 32A, 50/60HZ |
| Power | 12kw |
| Air pressure | 0.5-0.8 (Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 5700*4000*2000(mm) |
| weight | about 3500kg |
| Cyele time | 4s/string |
