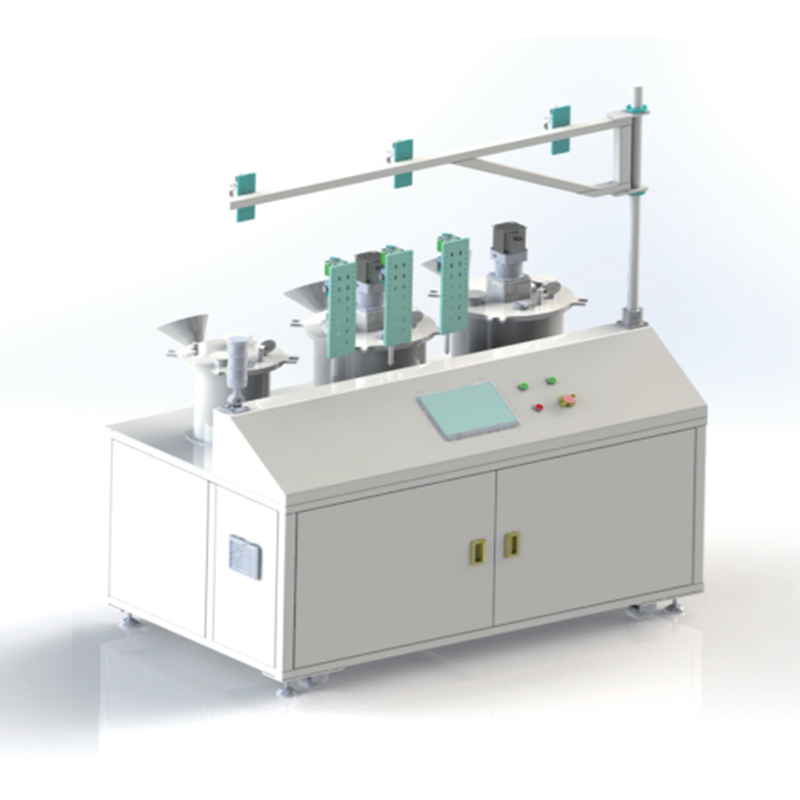

1. Automatically filling glue into the junction box.
2. A glue is stored in 30L stainless steel barrels, B glue is stored in 15L stainless steel barrels.
3. Precision screw pump to deliver glue.
4. Precision back-suction dispensing valve to deliver glue.
Function
1. Automatically filling glue into the junction box.
2. A glue is stored in 30L stainless steel barrels, B glue is stored in 15L stainless steel barrels.
3. Precision screw pump to deliver glue.
4. Precision back-suction dispensing valve to deliver glue.
Technical Performance
1. Mixing glue accuracy ±3%, ratio accuracy ±2%.
2.Automatic AB glue ratio, automatic glue dispensing by button or pulse.
3. With pipeline pressure over limit, glue shortage alarm.
4. Dynamic and static mixing options.
Technical Parameters
| Item | Parameter |
| Panel size | L:1640-2550(mm);W:990-1450(mm) |
| Voltage | AC220V±5%, 50Hz |
| Power | 5kw |
| Air pressure | 0.5-0.7(Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 1500*900*2350(mm) |
| weight | about 500kg |
