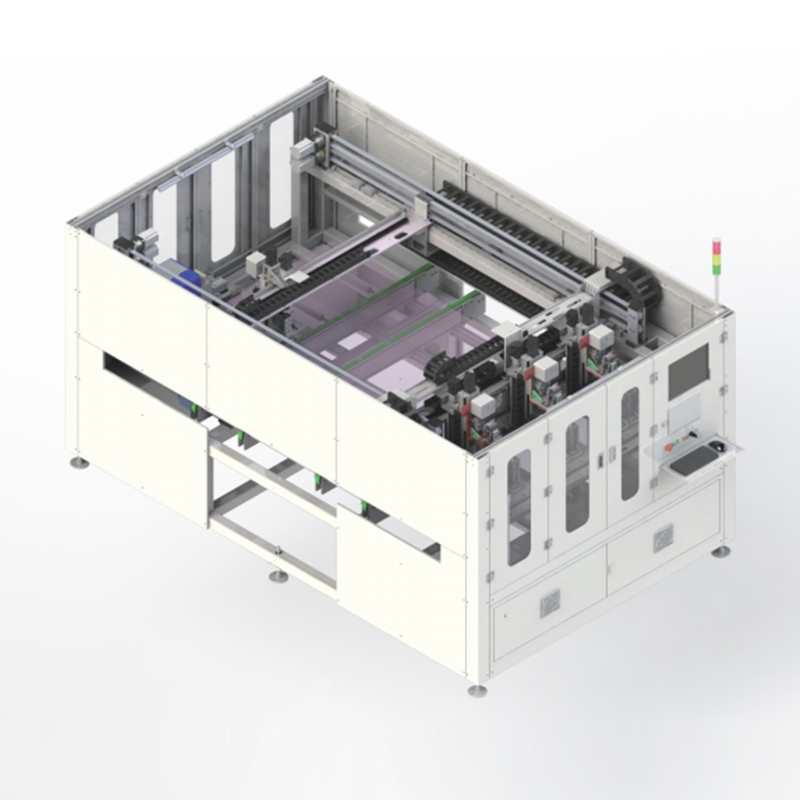

Realize automatic wire bending, place high temperature cloth or tape(choose one from two), and also have the function of pasting bar code on the back plate, transfer bar code or print and paste bar code (choose one from two).
Function
1. Glass servo straightening, one-key switching between different types of panel.
2. Detect the status of incoming materials, guide positioning, and inspect finished products through a reliable visual system.
3. The motion unit is driven by a servo motor, which is fast, accurate, stable and reliable.
4. Realize automatic wire bending, place high temperature cloth or tape(choose one from two), and also have the function of pasting bar code on the back plate, transfer bar code or print and paste bar code (choose one from two).
5. Simultaneous operation of three leads, with a cycle time of 13 seconds, fast speed, and high efficiency.
6. Servo control has flexible contact with the product, ensuring high safety.
7. The yield of adhesive tape and barcode pasting is ≥99.5%, stable and reliable, saving labor.
Technical Performance
1. Conventional, half piece, MBB fragment rate: ≤0.04%
2. Compatible cell specifications: 60 half cells, 172 half cells/MBB half cells.
3. High temperature cloth refueling frequency: ≥4 hours/time (non-stop refueling).
4. Visual system: incoming material inspection, guidance positioning, finished product inspection.
5. Visual accuracy: ≤±0.1mm.
Technical Parameters
| Item | Parameter |
| Panel size | L:1650-2520(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 3P+1N+1PE, 32A, 50/60HZ |
| Power | ≤8kw |
| Air pressure | 0.5-0.8 (Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 3530*2200*1800(mm) |
| weight | about 2500kg |
| Cyele time | ≤13s |
| Gas consumption | 200L/min |
