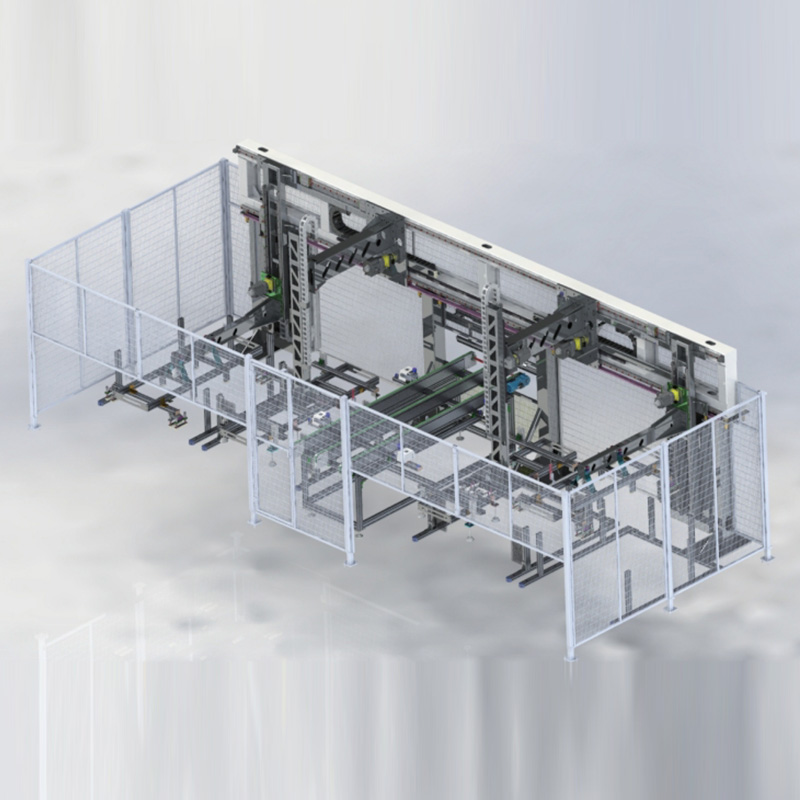

AGV loading and unloading, positioning and correction, sorting guard plates and grabbing packaging belt robot arm and pneumatic shears move together, the overall cycle time<30 seconds.
Function
1. For feeding glass, perform the following operations, cor-recting, divided to tray, removing the packing tape, cutting the packing tape short and sorting guard plates.
Technical Performance
1. AGV loading and unloading, positioning and correction, sorting guard plates and grabbing packaging belt robot arm and pneumatic shears move together, the overall cycle time<30 seconds.
Technical Parameters
| Item | Parameter |
| Panel size | L:1640-2550(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 3P+INIPE, 32A, 50/60HZ |
| Power | 16kw |
| Air pressure | 0.5-0.8 (Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 19630*3700*36(mm) |
| weight | about 9500kg |
| Cyele time | 30s |
