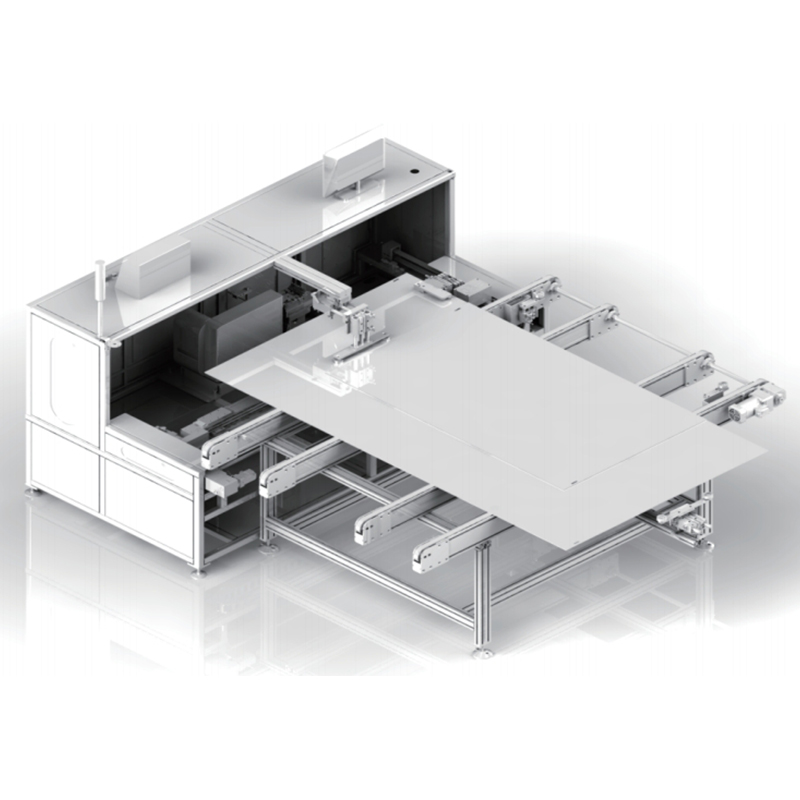

Function
1. Paste the barcode on the bottom of the glass, which can achieve semi paste and full paste.
2. Glass servo straightening, one click switching between different types of pv module.
3. Realize full compatibility of one short side area.
Function
1. Paste the barcode on the bottom of the glass, which can achieve semi paste and full paste.
2. Glass servo straightening, one click switching between different types of pv module.
3. Realize full compatibility of one short side area.
Technical Performance
1. Incoming materials and printing are synchronized, with a fastest cycle time of 12s.
2. There is a re inspection system after pasting to ensure that the bareode is pasted and the printed data is correct.
3. Utilization rate:> 99.5%.
Technical Parameters
| Item | Parameter |
| Panel size | L:1640-2550(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 3P+1N+1PE, 32A, 50/60HZ |
| Power | 4kw |
| Air pressure | 0.5-0.8 (Mpa) |
| Noise | <75dB |
| Overall size (L*H*W) | 2430*1330*1900(mm) |
| weight | about 1000kg |
| Labeling accuracy | ±1mm |
| Cyele time | 12s |
