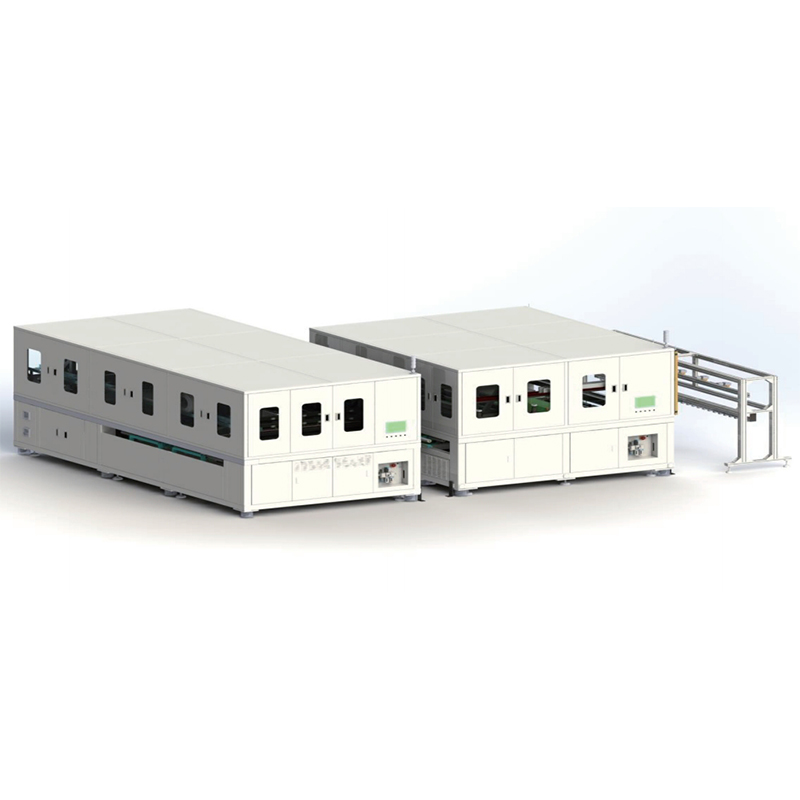

The film laminating process of the film strip between the cells of the solar photovoltaic module replaces the glazing process and solves the problem of the risk of broken pieces after lamination caused by glazing.
Function
1. The film laminating process of the film strip between the cells of the solar photovoltaic module replaces the glazing process and solves the problem of the risk of broken pieces after lamination caused by glazing.
2. The reflective film strip covers the cell string spacing and the cell spacing, realizing the reuse of the blank area and increasing the internal reflection of the module. The average efficiency of each module can be increased by about 1.5%.
3. The equipment covers cell laminating and string laminating, and can realize the automatic completion of the two-stage laminating process after loading.
Technical Performance
1. Adopting high-performance film laminating head, fast film laminating speed, cycle ≤15s.
2. After laminating, the length of each film strip deviates from the theoretical standard value by ±1mm.
3.After laminating, the center position of each film strip deviates from the theoretical standard center by ±0.2mm
4. After laminating, the straightness deviation of a single film strip is ±0.2mm/m.
5.Quickly change rolls and types, material change time ≤30s/group, type change time ≤10min.
Technical Parameters
| Item | Parameter |
| Panel size | L:1600-2550(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 50/60HZ |
| Power | 30kw |
| Air pressure | 0.5-0.8 (Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 7700*5200*2350(mm) |
| weight | about 10T |
