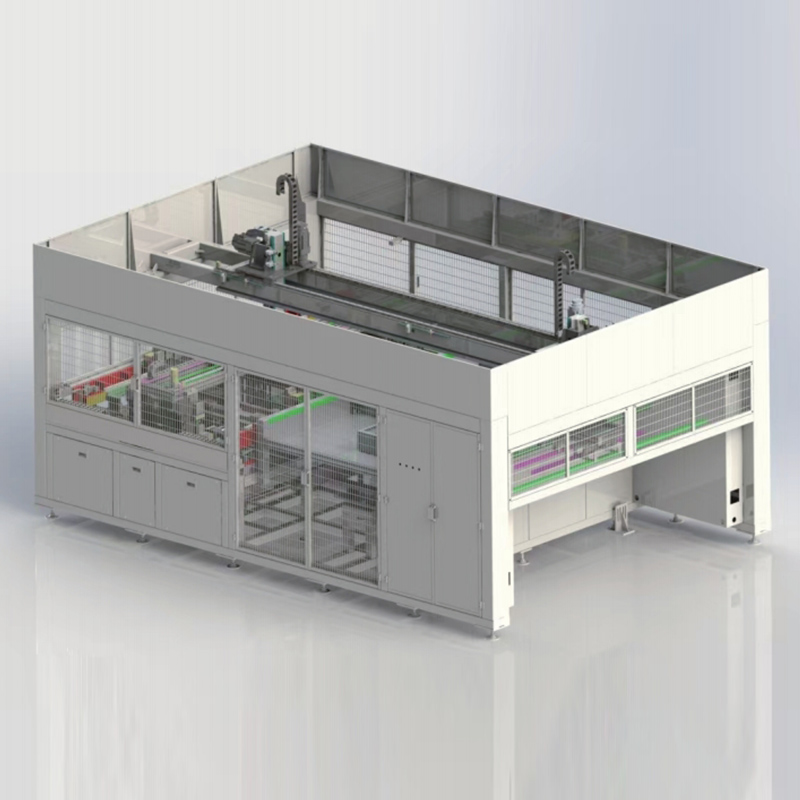

1. The framing machine and frame gantry can work independently without interfering with each other.
2. After the frame is transferred to the framing machine, the framing machine performs the frame assembly action.
3. The overall servo lifting of the suction cup surface can be fine-tuned and leveled.
4. It has a one-button version switching function.
Function
1. The framing machine and frame gantry can work independently without interfering with each other.
2. After the frame is transferred to the framing machine, the framing machine performs the frame assembly action.
3. The overall servo lifting of the suction cup surface can be fine-tuned and leveled.
4. It has a one-button version switching function.
Technical Performance
1. Compatible with B-side frame thickness 25-40mm, C-side 20-35mm, and compatible with no C-side frame.
2. Diagonal assembly accuracy ±1.0mm.
3. Profile assembly height difference ≤0.3mm.
4. Frame corner gap ≤0.3mm.
Technical Parameters
| Item | Parameter |
| Panel size | L:1650-2550(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 3P+1N+1PE, 32A, 50/60Hz |
| Power | 12kw |
| Air pressure | 0.5-0.7(Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 5825*4280*2600(mm) |
| weight | about 5000kg |
| Cyele time | 13s |
