The whole machine is compatible with frames of different sizes, and is designed with a quick changeover adjustment mechanism to improve changeover efficiency.
Function

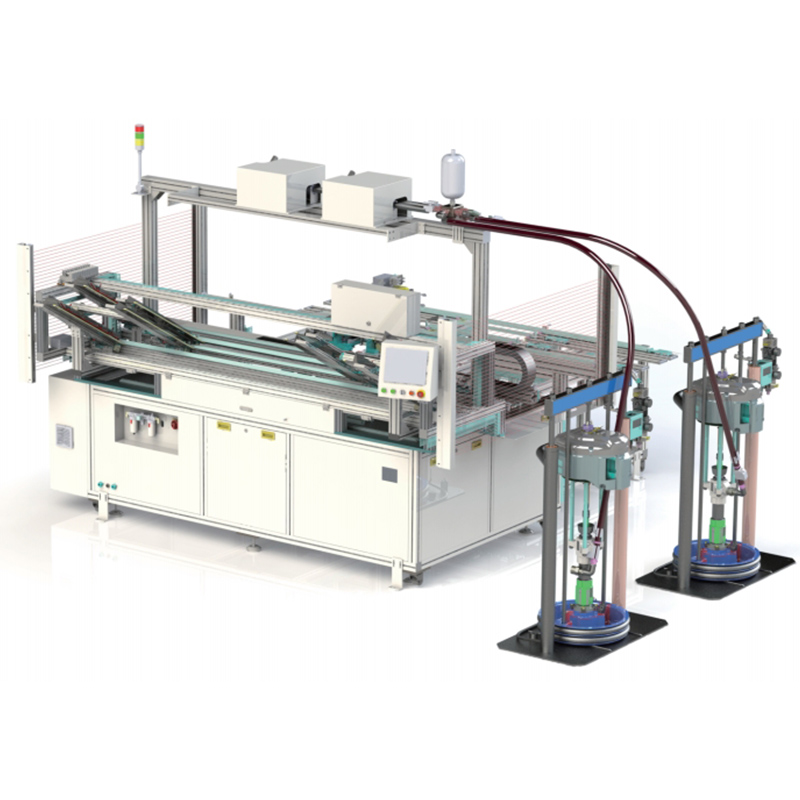

Precision gluing of aluminum frames of solar modules before frame assembly.
Technical Performance
1. Dual-head high-speed gluing, dual pumps for non-stop feeding, high efficiency, 16s cycle.
2. The glue supply system realizes automatic PlD adjustment function, real-time correction of glue quantity, and glue output accuracy of ±3%.
3. The clip-type loading bin can store more than 20 sets of frames.
4. The whole machine is compatible with frames of different sizes, and is designed with a quick changeover adjustment mechanism to improve changeover efficiency.
Technical Parameters
| Item | Parameter |
| Panel size | L:1600-2550(mm);W:990-1450(mm) |
| Voltage | AC220V±5%, 1PH+1N+1GND, 20A, 50/60Hz |
| Power | 3kw |
| Air pressure | 0.5-0.8(Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 3750*3560*2800(mm) |
| weight | about 1600kg |
