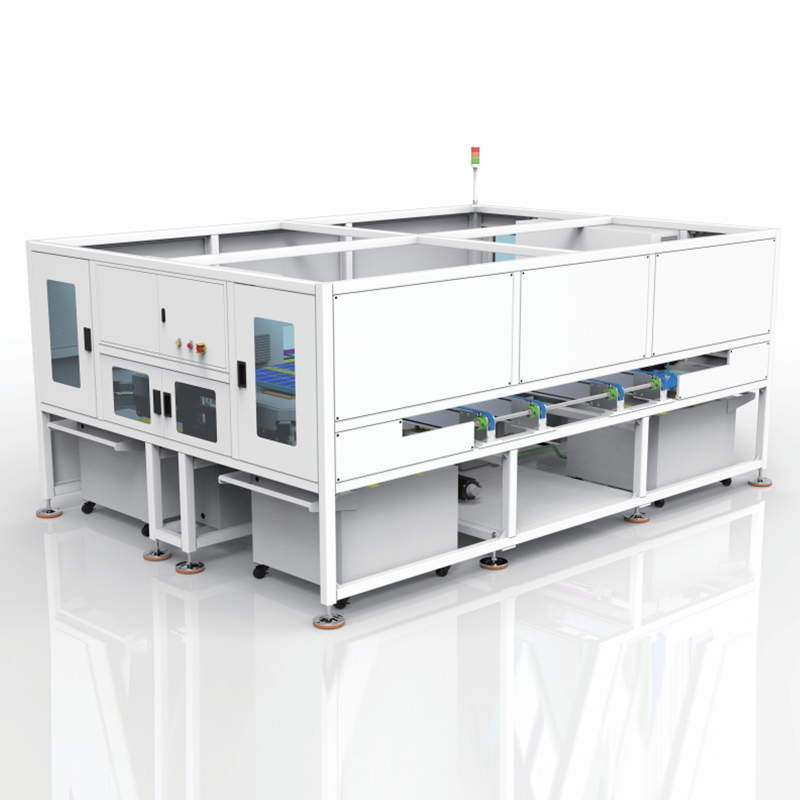

1. When the panel is transported to the center position by the conveyor line, it is automatically corrected and positioned.
2. There are two cleaning modules on each side. Each cleaning module sprays high-pressure water through a high-pressure nozzle to clean the residual glue on the four joints of the A and B sides of the component frame.
Function
1. When the panel is transported to the center position by the conveyor line, it is automatically corrected and positioned.
2. There are two cleaning modules on each side. Each cleaning module sprays high-pressure water through a high-pressure nozzle to clean the residual glue on the four joints of the A and B sides of the component frame.
Technical Performance
1. Controlled by touch screen and PLC.
2. The deviation correction servo and the four sides of the cylinder are corrected.
3. The high-pressure water pump servo drive has high pressure, low noise and precise control.
4. The residual glue is cleaned up and the components are automatically released after cleaning.
5. Automatically switch the version.
Technical Parameters
| Item | Parameter |
| Panel size | L:1640-2550(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 3P+1N+1PE, 50/60Hz, 36A |
| Power | 14kw |
| Air pressure | 0.5-0.8(Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 3700*2600*1800(mm) |
| weight | about 2000kg |
| Cycle time | 13s |
