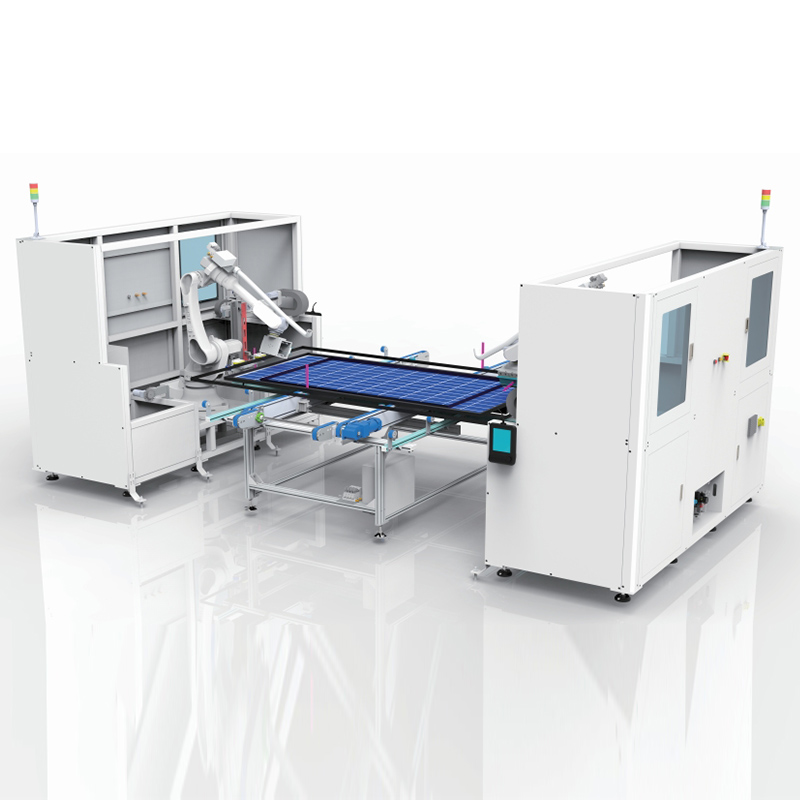

1. When the panel is transported to the center position by the conveyor line, it is automatically corrected and positioned.
2. Two six-axis robots on 2 sides grab and wipe the pearl cotton from the silo and clean the residual glue on the four joints ofthe A and B sides of the component frame.
3. After the residual glue is cleaned, the wiping foam is automatically placed in the recycling bin by the six-axis robot.
4. The wiping foam uses the front-end battery cell packaging material for recycling.
Function
1. When the panel is transported to the center position by the conveyor line, it is automatically corrected and positioned.
2. Two six-axis robots on 2 sides grab and wipe the pearl cotton from the silo and clean the residual glue on the four joints ofthe A and B sides of the component frame.
3. After the residual glue is cleaned, the wiping foam is automatically placed in the recycling bin by the six-axis robot.
4. The wiping foam uses the front-end battery cell packaging material for recycling.
Technical Performance
1. Controlled by touch screen and PLC.
2. Automatic four-side correction and alignment, the six-axis robot automatically grabs the eraser material for cleaning and the wiping process is flexibly controlled.
3. The wiping material is recycled using the front-end battery cell packaging material, and the wiping material is replaced every 4 hours. Each machine is equipped with 2 sets of wiping material fixture boxes, which can achieve rapidmaterial replenishment.
4. Automatically switch the board type.
Technical Parameters
| Item | Parameter |
| Panel size | L:1640-2550(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 3P+1N+1PE, 50/60Hz, 53A |
| Power | 20kw |
| Air pressure | 0.5-0.8(Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 5170*2640*2180(mm) |
| weight | about 2500kg |
| Cycle time | 13s |
