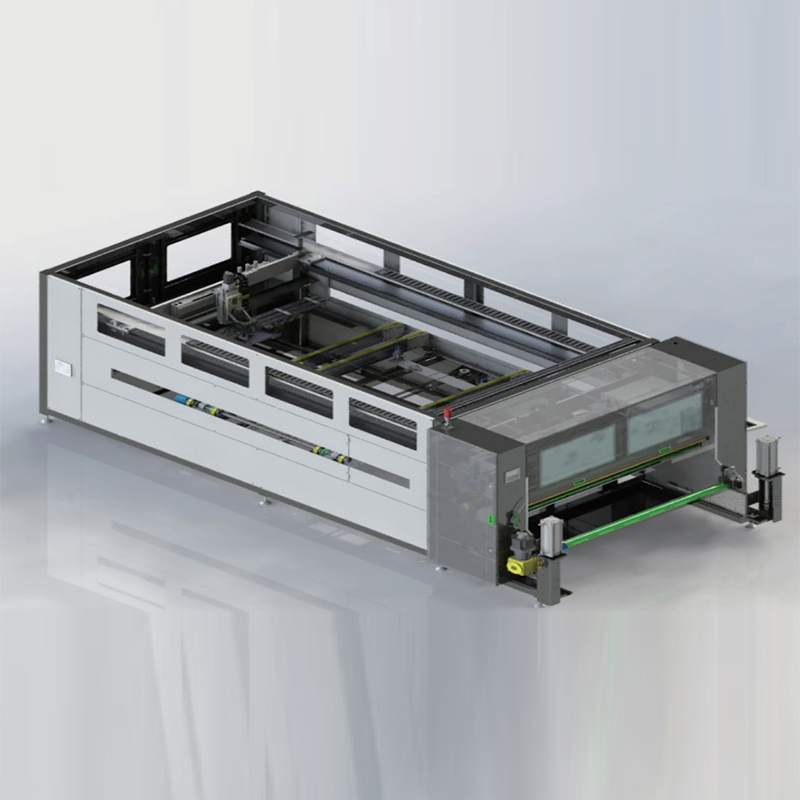

1. ldopting constant tension synchronous feeding and visual automatic correction function.
2. Glass servo straightening, one-key switching between different types of panels.
3. The cutting length range is 10mm-50mm; Place ≤3 long strips.
4. The material width range is 990mm-1450mm.
Function
1. ldopting constant tension synchronous feeding and visual automatic correction function.
2. Glass servo straightening, one-key switching between different types of panels.
3. The cutting length range is 10mm-50mm; Place ≤3 long strips.
4. The material width range is 990mm-1450mm.
Technical Performance
1. The equipment equipped with a long strip melting function, with 3 melting heads on each side of the short edge. The long strip is fused together with the short edge of a film, and the melting position and time can be adjusted.
2. The placement accuracy of the cut strip is ±1mm.
Technical Parameters
| Item | Parameter |
| Panel size | L:1650-2650(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 3P+1N+1PE, 25A, 50/60HZ |
| Power | 7.5kw |
| Air pressure | 0.5-0.8 (Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 4860*1880*2050(mm) |
| weight | about 3000kg |
| Cutting accuracy | ±1.5mm |
| Cyele time | 13s |
