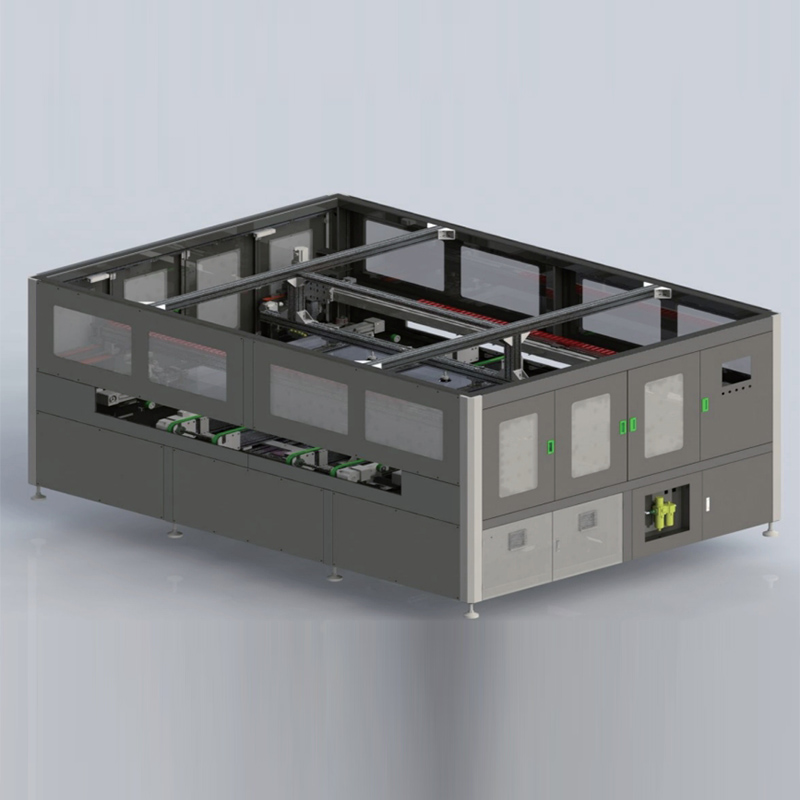

The edge sealing head mechanism adopts a combination of multiple cylinders, which enables flexible contact with the panels during operation, improving the accuracy and flexibility of edge sealing.
Function
1. The equipment adopts advanced control technology and precise mechanical structure, achieving high efficiency and high precision production.
2. The edge sealing head mechanism adopts a combination of multiple cylinders, which enables flexible contact with the panels during operation, improving the accuracy and flexibility of edge sealing.
Technical Performance
1. Servo synchronous belt positioning.
2. High speed steel cutters have a long service life.
3. Refueling time <60 seconds.
4. High precision lifting platform.
Technical Parameters
| Item | Parameter |
| Panel size | L:1640-2550(mm);W:990-1450(mm) |
| Voltage | AC380V±5%, 3P+1N+1PE, 32A, 50/60HZ |
| Power | 10kw |
| Air pressure | 0.5-0.8 (Mpa) |
| Noise | <80dB |
| Overall size (L*H*W) | 3870*2860*1850(mm) |
| weight | about 2000kg |
| Cyele time | 16s |
| Compatible with tape width | 20~30mm |
