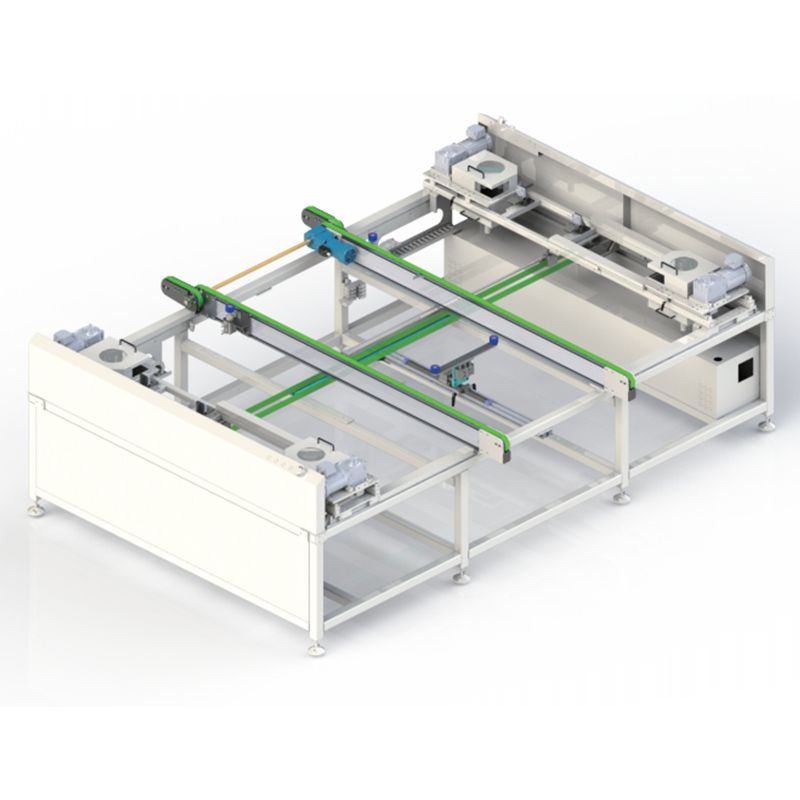

1). The overall structure is composed of conveying, positioning and corner milling structure. 2). Milling 4 corners at the same time, 2 corner positions can be adjusted to adapt to different sizes of panels. 3). The four corners are clamped and positioned, and there is no tremor and vibration of the panels when the corner is milled. 4). The dust cover is easy to open, with dust box for easy cleaning. 5). The overall structure is composed of glass straightening conveying unit, angle protection system, vacuum system, etc.
Function
1. Grinding of the four corners of the panel frame.
2. Alignment of the two sides + alignment of the back to achieve precise positioning.
3. Optional curing detection function.
Technical Performance
1. The equipment is fully automatically controlled and no human intervention is required during operation.
2. Equipped with a dust collection vacuum cleaner. The filing mechanism is equipped with a safety protection switch to ensure personnel safety.
Technical Parameters
| Item | Parameter |
| Panel size | L:1640-2550(mm);W:990-1450(mm) |
| Panel Positioning Accuracy | ±1mm |
| Abrasive belt life | ≥300000pcs |
| Voltage | AC380V±5%, 50/60Hz |
| Power | ≤2kw |
| Air pressure | 0.5-0.8(Mpa) |
| Noise | <70dB |
| Overall size (L*H*W) | 3980*2040*1800 (mm) |
| weight | about 5000kg |
| Cycle time | 13s |
| Section width | 0.5~1mm |
| upper and lower section width | error does not exceed 0.3mm |
Technical Performance
1). The overall structure is composed of conveying, positioning and corner milling structure.
2). Milling 4 corners at the same time, 2 corner positions can be adjusted to adapt to different sizes of panels.
3). The four corners are clamped and positioned, and there is no tremor and vibration of the panels when the corner is milled.
4). The dust cover is easy to open, with dust box for easy cleaning.
5). The overall structure is composed of glass straightening conveying unit, angle protection system, vacuum system, etc.
6). The same service feeding and automatic switching ensure that the components can enter and exit at the same time, so as to save the work beat.
7). Automatic corner protection on components Then fold along the crease.
8). Touch screen interface, switch component specification, manual operation, alarm information and other parameter settings.
About Auto Corner Milling
As a Chinese high-tech enterprise, Horad is focusing on product solutions of solar cell & panel automation equipment with global footprints, covering full range of services from R&D, manufacturing, sales, service and customization. Horad R&D center located in Suzhou Xiangcheng District, is around 2000㎡ with more than 150 R&D engineers; Production plant located in Changshu New District is about 70,000㎡,with more than 600 employees, and 2nd stage will be completed and put in operation in 2023 as an Intelligent Manufacturing Plant with 100000㎡ area.
HORAD main products: solar module production line, Intelligent Plant turnkey solution, AI industrial turnkey solution and AGV automatic material distribution system and etc., we have leading technologies in solar module turnkey projects, with more than 200 patents, and has passed the ISO9001, CE, ETL, UL and CSA certification. Horad equipment has been exported to more than 17 countries and regions like USA, South Korea, India, Vietnam, Turkey, Egypt and etc., the product and service quality have been broadly recognized by global customers.
